Crusher Hammer Heads
The materials of high manganese steel hammer heads include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert titanium alloy bars and hardfacing.
Learn More

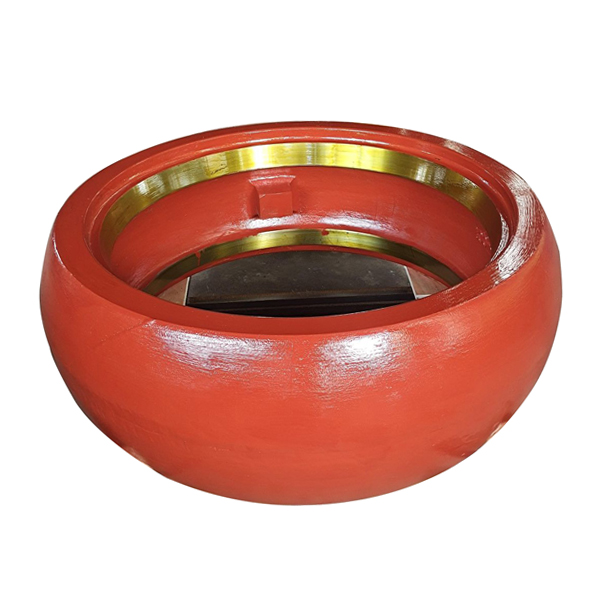

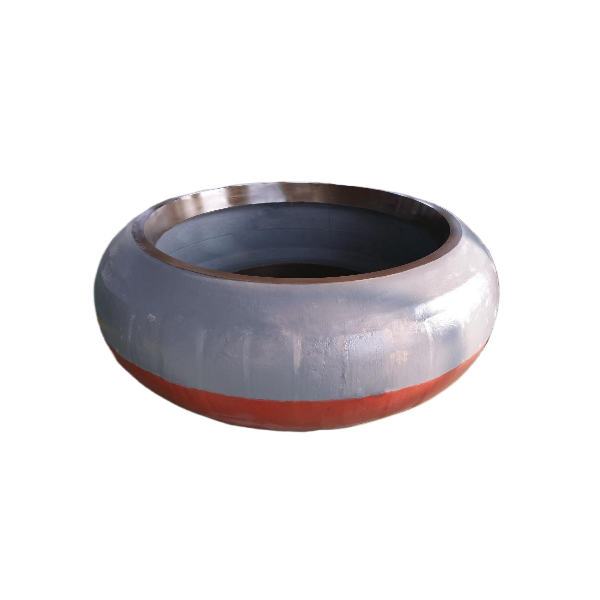

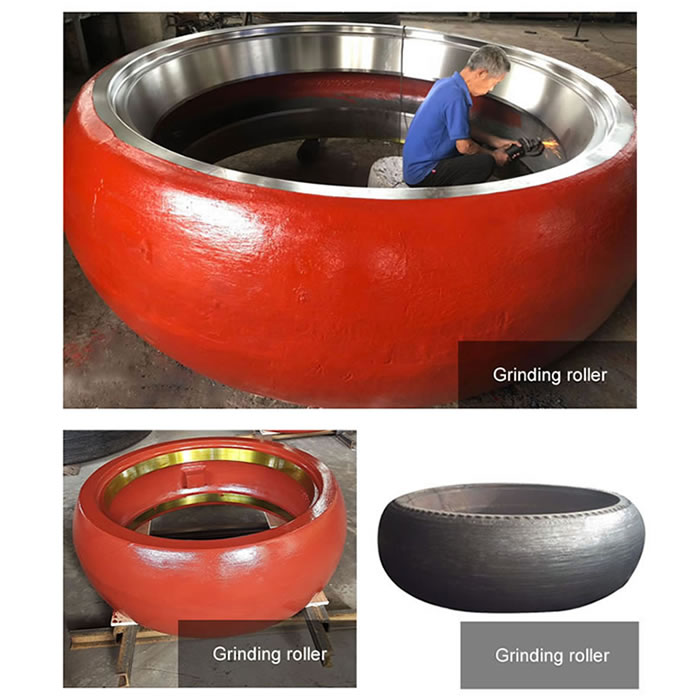

Product name: Vertical mill roller, Roller sleeve, Grinding roller, Conical Roller, Wheel Roller, Extrusion roller of roller press
Production process: Casting
Applicable machines: Vertical mill
Material types: high chromium cast iron, Ceramic-metal composite, Hardfacing, Medium alloy steel, High Manganese Steel +TiC Alloy bar +Wear-Resistant Welding Layer, etc.
Applicable industries: Mining, cement plants, coal, steel, etc.
1. Before sales, we fully understand the customer's working conditions and recommend the most suitable material selection.
2. Provide customers with drawings based on machine models and spare parts dimensions.
3. After sales, we continue to monitor product usage and provide timely support.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, and competitive pricing.
At present, the grinding roller forms used in vertical roller mills in various industries can be divided into two types according to the shape, namely, conical roller and wheel roller.
As a professional cement equipment parts manufacturer, Haftech New Materials can manufacture matching mill rollers for customers according to their drawings or VRM models. We have continuously developed and improved the production process and manufacturing technology over the decades of the production process. At present, we have mature VRM grinding roller production technology. We are committed to improving the wear resistance of the roller of the vertical mill, optimizing the grinding process, and helping customers save maintenance costs.
The materials of the grinding roller we produce are mainly high chromium cast iron, high chromium + surfacing, Medium alloy steel(alloy studs) + surfacing, ceramic alloy composite, etc.

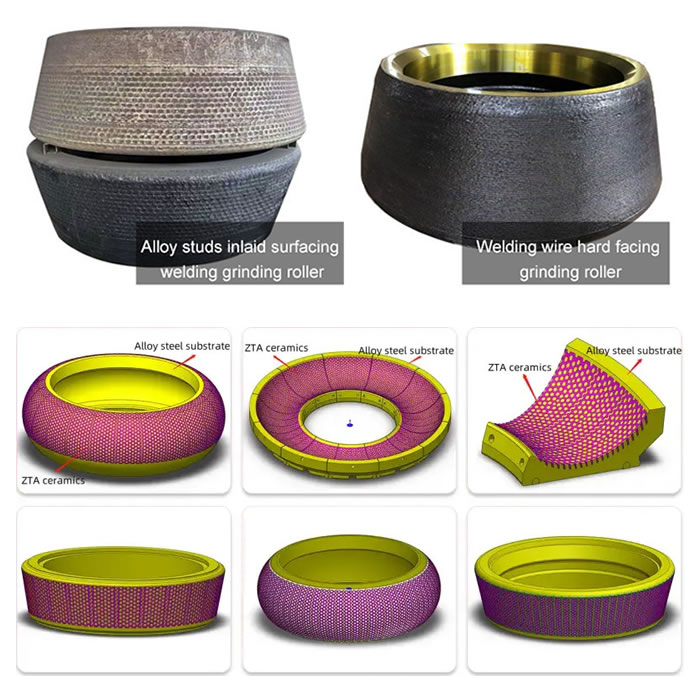

The most material of grinding roller is high Chrome, add the surfacing welding can extend lifetime and reduce costs and improve efficiency.Surfacing welding include Welding wire hard facing and Alloy studs inlaid surfacing welding.

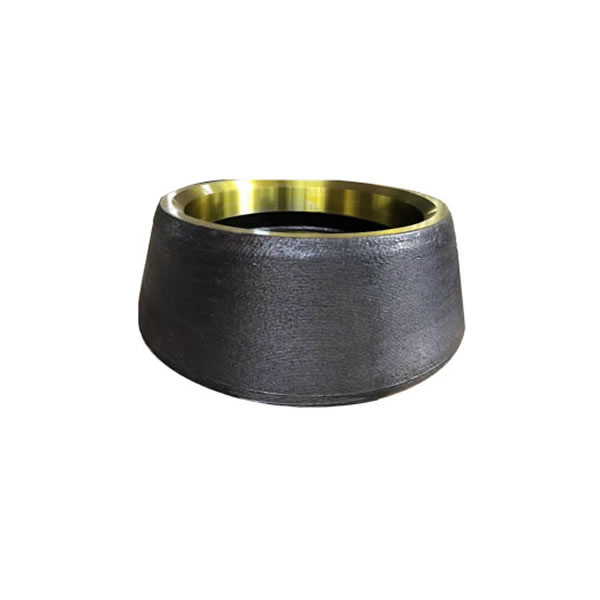

Welding wire surfacing grinding roller improves the wear resistance and service life by surfacing wear-resistant welding wire on the surface of the roller body.

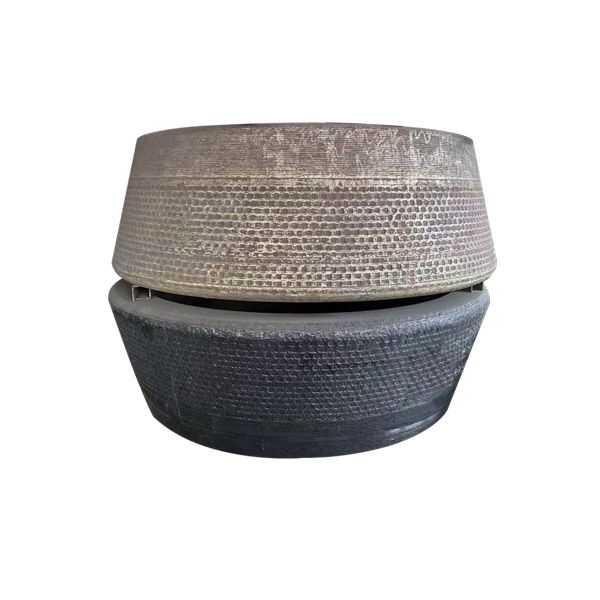

The Alloy studs inlaid surfacing welding vertical grinding roller is designed according to the working conditions and the wear resistance curve of the product. In the wear area, the powder metallurgy technology and surfacing technology are combined, and the special welding materials are used to form the inlay welding structure and metallurgical combination, improve the wear resistance and service life of the product, and achieve the regenerative repair to improve the service life of the product.
The ceramic alloy composite grinding roller combines the characteristics of ceramic and alloy. It has both the wear resistance of ceramic and the mechanical properties of alloy, and is not easy to break or fall off. Due to the different properties of ceramic and alloy, the height difference of the surface is caused, thus forming a honeycomb structure, which increases the friction force and effective contact area of the surface, and helps to improve the grinding or crushing efficiency.
The Alloy studs inlaid surfacing welding vertical grinding roller is designed according to the working conditions and the wear resistance curve of the product. In the wear area, the powder metallurgy technology and surfacing technology are combined, and the special welding materials are used to form the inlay welding structure and metallurgical combination, improve the wear resistance and service life of the product, and achieve the regenerative repair to improve the service life of the product. This type of roller is suitable for extremely severe working conditions and can replace the ceramic roller and other products on the current market.
The materials of high manganese steel hammer heads include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert titanium alloy bars and hardfacing.
Learn More
The wear-resistant solution for jaw crushers depends on whether you are engaged in quarrying, mining or recycling, choose the most suitable jaw plate.
Learn More
The materials of high manganese steel blow bars include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert titanium alloy bars and hardfacing.
Learn More
A wide range of premium quality jaw crusher cast cheek plates are available for all brands of jaw crushers. Our jaw crusher cheek plates are cast from the highest grade wear resistant grades with the hardest composition for maximum wear resistance. We offer a wide range of grades and surface shapes to best suit your crushing needs.
Learn More
