Crusher Hammer Heads

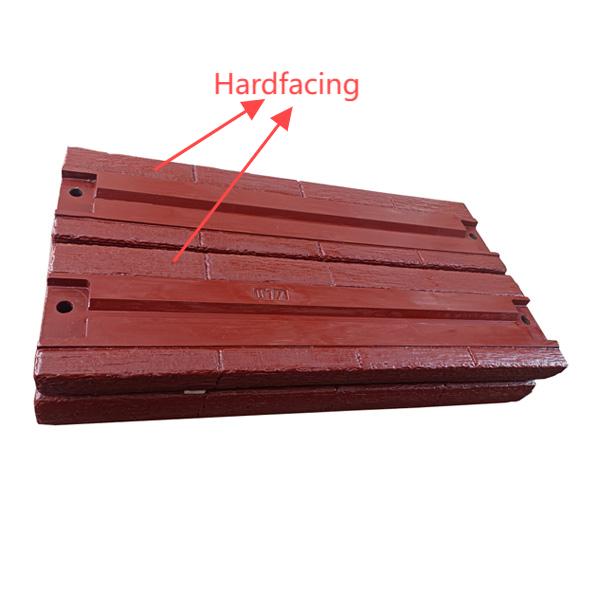

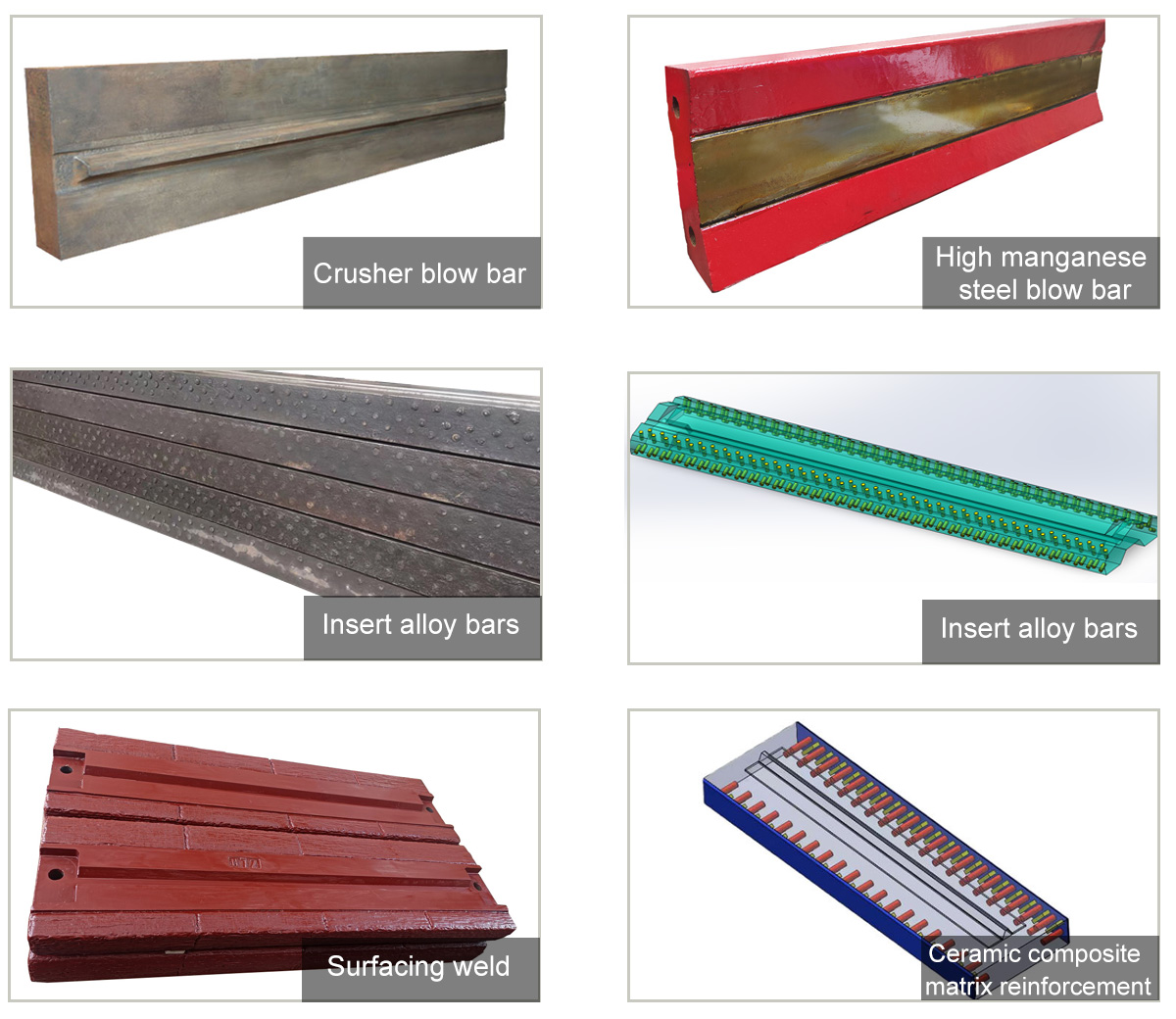

The materials of high manganese steel hammer heads include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert titanium alloy bars and hardfacing.
Learn More
Global Sales: OEM tailor design
Product name: Blow Bars/Impact Crusher parts/Martensitic Blow Bars/Impact Crusher Blow Bars Manufacturers
Production process: Casting
Applicable machines: Various models of Impact Crushers
Material types: High manganese steel, high chrome, high manganese steel insert alloy bars & hard facing layer, Ceramic metal composite, Ceramic Composite Matrix Reinforcement, bimetal composite, super high manganese, high chromium cast iron, alloy steel, etc.
Applicable industries: mining, cement plants, coal, steel, etc.
Applicable materials: river pebbles, rock, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc.
1. Before sales, we fully understand the customer's working conditions and recommend the most suitable material selection.
2. Provide customers with drawings based on machine models and spare parts dimensions.
3. After sales, we continue to monitor product usage and provide timely support.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, and competitive pricing.
The materials of high manganese steel blow bars include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert titanium alloy bars and hardfacing.

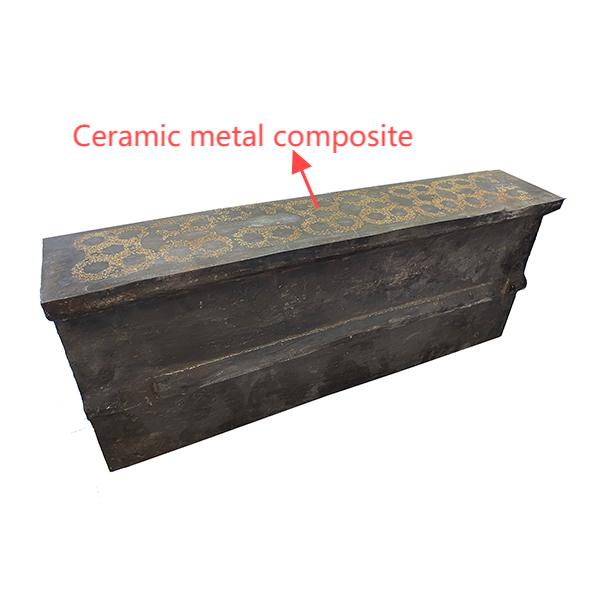

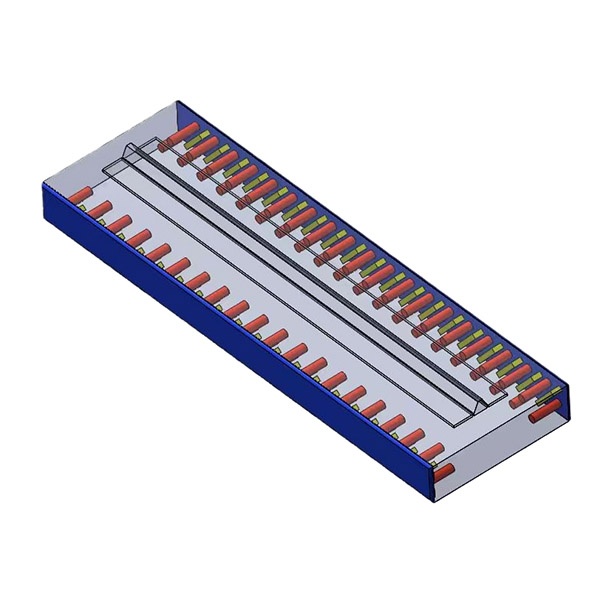

Our company's newly developed ceramic composite matrix reinforced hammer plate incorporates cermet into a traditional high-manganese steel matrix, forming a multi-level composite material through in-situ self-generation technology. This hammer plate exhibits twice the hardness of Mn18Cr2 at room temperature, and its hardness decreases only slightly at high temperatures compared to room temperature, thus solving the problem of significant attenuation of wear resistance in high-manganese steel with increasing temperature.
Suitable for cement plant, stone factories and other rocky places with poor conditions.
| Grade | Chemical component% | |||||
|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | S | P | |
| ZG120Mn13 | 1.05~1.35 | 0.3~0.9 | 11~14 | - | ≤0.06 | ≤0.04 |
| ZG120Mn13Cr2 | 1.05~1.35 | 0.3~0.9 | 11~14 | 1.5~2.5 | ≤0.06 | ≤0.04 |
| ZG120Mn17Cr2 | 1.05~1.35 | 0.3~0.9 | 16~19 | 1.5~2.5 | ≤0.06 | ≤0.04 |
1：Allowed to add microscale V,Ti,B and Re etc.
2：We can produce the other grade high manganese steel hammer according to customers’ requirments.
| Grade | Stretch property | Hardness HB | |||
|---|---|---|---|---|---|
| yield strength ReH/Mpa | tensile strength Rm/Mpa | Elongation at cross section % | Shock absorption energyKu2J | ||
| ZG120Mn13 | - | ≥685 | ≥25 | ≥118 | ≤300 |
| ZG120Mn13Cr2 | ≥390 | ≥735 | ≥20 | - | ≤300 |
The materials of high manganese steel hammer heads include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert titanium alloy bars and hardfacing.
Learn More
The wear-resistant solution for jaw crushers depends on whether you are engaged in quarrying, mining or recycling, choose the most suitable jaw plate.
Learn More
A wide range of premium quality jaw crusher cast cheek plates are available for all brands of jaw crushers. Our jaw crusher cheek plates are cast from the highest grade wear resistant grades with the hardest composition for maximum wear resistance. We offer a wide range of grades and surface shapes to best suit your crushing needs.
Learn More
The crusher rotor is the heart of the hammer crusher.The hammer crusher rotor is composed of a main shaft, a hammer frame, and hammer heads. The size of the rotor varies according to the specifications of different hammer crushers. Haftech New Materials using advanced finite element analysis technology to effectively improve the design of the crusher rotor and extend the service life of the rotor.
Learn More
Feel free to contact us by telephone or email and we will be sure to get back to you as soon as possible.
