Global Sales: OEM tailor design

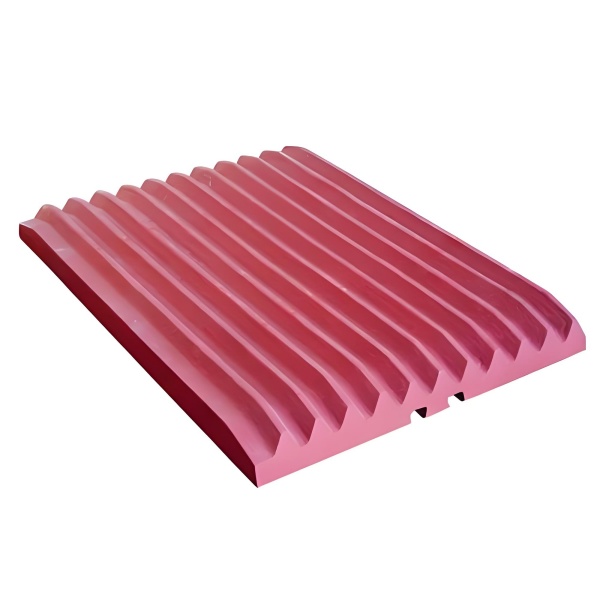

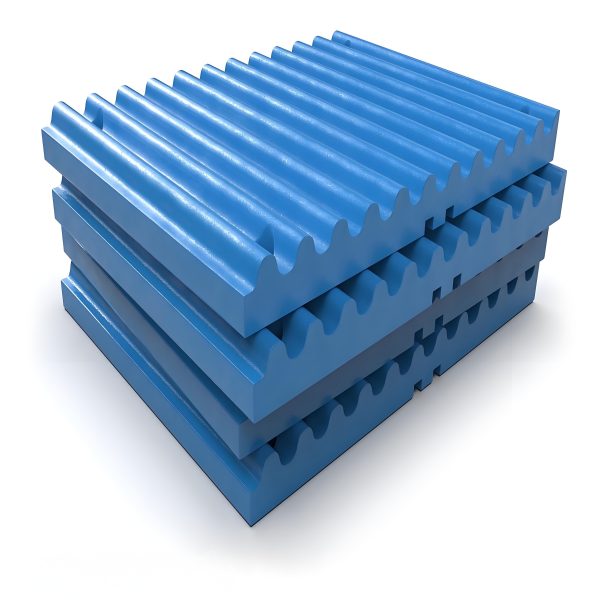

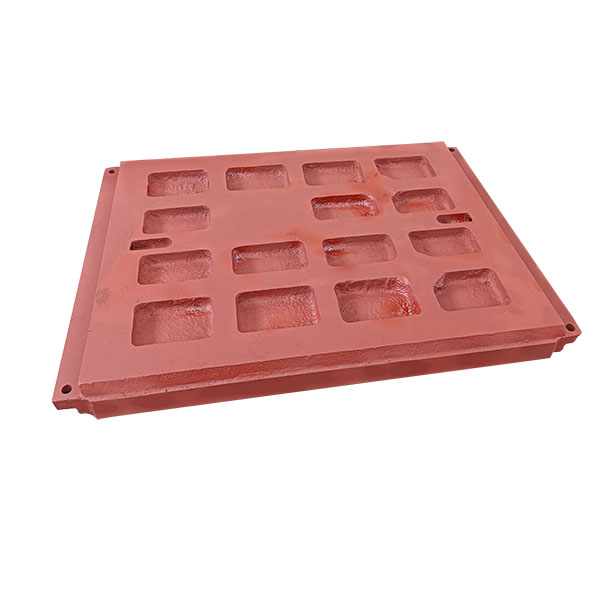

Product name: Jaw plate/Swing Jaw Plate/Fixed Jaw Plate/Movable Jaw Plate/Jaw Crusher Liners/Jaw Dies
Production process: Casting
Applicable machines: Jaw crushers

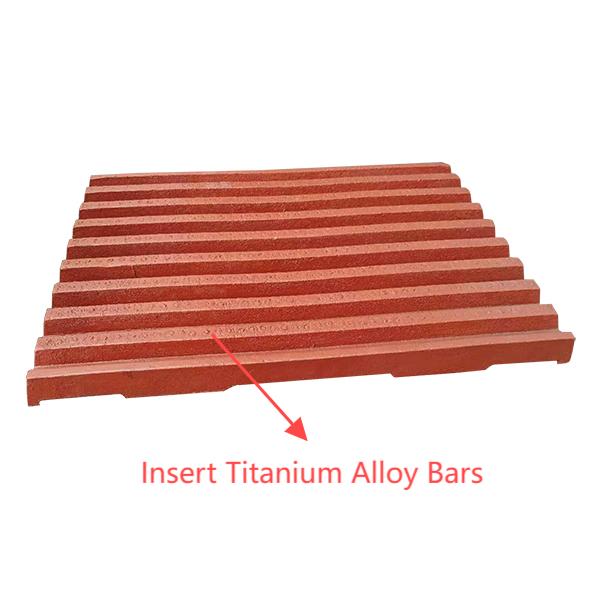

Material types: High manganese steel(Mn13Cr2/Mn18Cr2), high manganese steel insert titanium alloy bars, high manganese insert titanium alloy bars and hardfacing, high chromium cast iron, alloy steel, etc.
Applicable industries: mining, cement plants, coal, steel, etc.
1. Before sales, we fully understand the customer's working conditions and recommend the most suitable material selection.
2. Provide customers with drawings based on machine models and spare parts dimensions.
3. After sales, we continue to monitor product usage and provide timely support.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, and competitive pricing.
The wear-resistant solution for jaw crushers depends on whether you are engaged in quarrying, mining or recycling, choose the most suitable jaw plate.
Our Jaw plates are cast from the highest grade of ferro Manganese, to provide the hardest composition for maximum wear resistance. We offer a wide variety of tooth profiles & surface shapes to best suit your crushing needs.

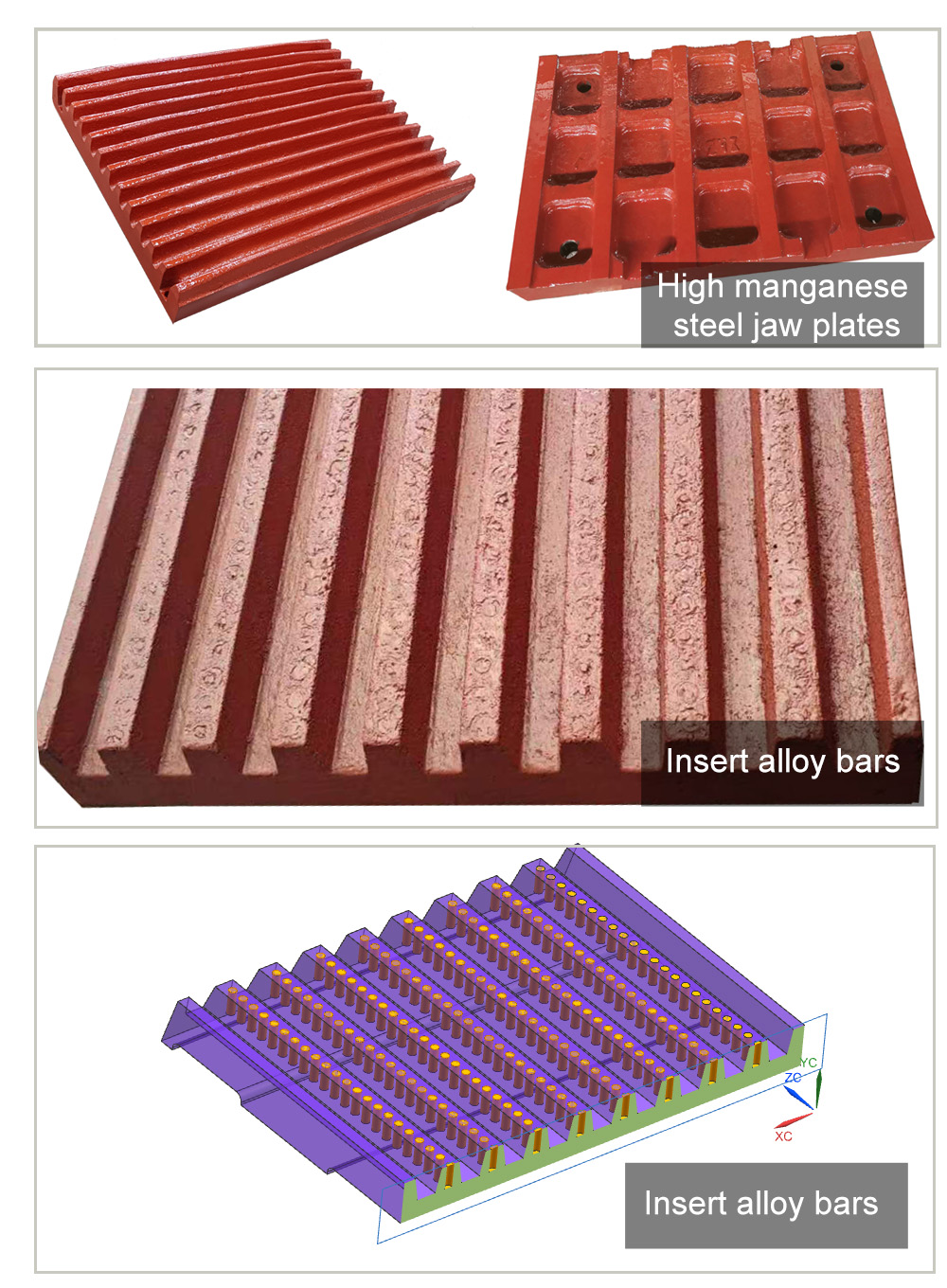

The materials of high manganese steel Jaw plates include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert titanium alloy bars and hardfacing.
Suitable for cement plant, stone factories and other rocky places with poor conditions.
Haftech New materials jaw plates have the following features:
1. Designed for maximum operational flexibility;
2. Maximize uptime;
3. Reduce wear;
4. Optimize production;
5. Extend service life.
| Grade | Chemical component% | |||||
|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | S | P | |
| ZG120Mn13 | 1.05~1.35 | 0.3~0.9 | 11~14 | - | ≤0.06 | ≤0.04 |
| ZG120Mn13Cr2 | 1.05~1.35 | 0.3~0.9 | 11~14 | 1.5~2.5 | ≤0.06 | ≤0.04 |
| ZG120Mn17Cr2 | 1.05~1.35 | 0.3~0.9 | 16~19 | 1.5~2.5 | ≤0.06 | ≤0.04 |
1：Allowed to add microscale V,Ti,B and Re etc.
2：We can produce the other grade high manganese steel hammer according to customers’ requirments.
| Grade | Stretch property | Hardness HB | |||
|---|---|---|---|---|---|
| yield strength ReH/Mpa | tensile strength Rm/Mpa | Elongation at cross section % | Shock absorption energyKu2J | ||
| ZG120Mn13 | - | ≥685 | ≥25 | ≥118 | ≤300 |
| ZG120Mn13Cr2 | ≥390 | ≥735 | ≥20 | - | ≤300 |
